Welding Machine with Robot Mig Welding Machine

Welding Machine with Robot Mig Welding Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-02-13
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10CBM
  • Place of Origin:  China
  • Brand Name:  HAOYU
  • Model Number:  BN006N
  • Weight: 2000.000 kg

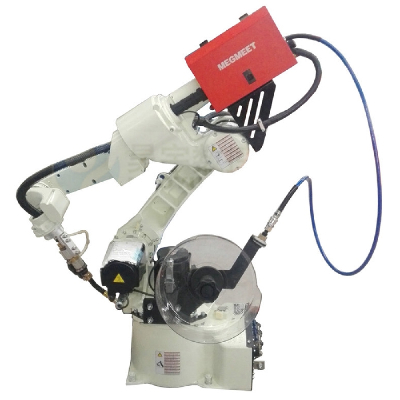

Welding Machine with Robot Mig Welding Machine

  1. Payload: 6KG

  2. Reach: 1445mm

  3. Used for fillet weld connections. Steel needs to be spot welded advance.

  4. Melting thickness and width can reach welding requirement. With uniform and smooth welding appearance.

  5. Choose MIG welding type

  6. Kawasaki control system



welding automation with ARC WELDING ROBOTIC ARM, Automatic MIG girth seam welding robot for tank and air compressor, aluminum orbital pipe tube welding robot machines manipulator with robotic arm, cnc beam steel submerged arc welding machine to weld pipe and flange, automatic TIG Longitudinal girth Circular circumferential Straight seam robotic welder welding machines for welding tank or round tubes, seam welders products suppliers, manufacturers and exporters on Alibaba.com stitch welders, gantry type pipe handling robot welding machine manufacturers china for steel pipe handling and packing, Scaffolding circular seam automatic welding machine, Scaffolding Automatic Welding Machine, Carbon steel Scaffolding Ringlock Ledger Welding Machine, Pipe handling Robot, gantry robot for steel pipe handling packing, pipe welding manipulator with robotic arm, gantry type robot welding machine manufacturers china, arm robot, automatic welding machine, argon welding machine, pipe cutting machine, welding robot, welding machine, pipe welding machine, industrial robot arm, robotic welding machine, robot arm, Steel Pipe Welding Machine, Circumferential Seam Welding, Seam Welding, girth welding machine, Tank welding machine,Seam welders

Degrees of freedom

6 axes

Payload

6 kg

Reach

1445mm

Welding linear speed

3-10 mm/s

Repeatability

±0.05mm

Diameter of solid wire

φ1.2mm

Welding current

350A

Shielding gas

CO2

Sensor

OMRON

Welding source

2sets×MEGMEET (CM-350)

Motion Range

Arm rotation (JT1)

±165°

Arm out-in (JT2)

±150°~-90°

Arm up-down (JT3)

﹢45°~175°

Wrist swivel (JT4)

±180°

Wrist bend (JT5)

±135°

Wrist twist (JT6)

±360°

Max speed

Arm rotation (JT1)

240°/s

Arm out-in (JT2)

240°/s

Arm up-down (JT3)

220°/s

Wrist swivel (JT4)

430°/s

Wrist bend (JT5)

430°/s

Wrist twist (JT6)

650°/s

Moment (N*m)

Wrist swivel (JT4)

12

Wrist bend (JT5)

12

Wrist twist (JT6)

3.75

Moment of inertia (kg*m2)

Wrist swivel (JT4)

0.4

Wrist bend (JT5)

0.4

Wrist twist (JT6)

0.07

Power Requirements*2

2KVA


  • Size:  10CBM
  • Place of Origin:  China
  • Brand Name:  HAOYU
  • Model Number:  BN006N
  • Weight: 2000.000 kg

Degrees of freedom

6 axes

Payload

6 kg

Reach

1445mm

Welding linear speed

3-10 mm/s

Repeatability

±0.05mm

Diameter of solid wire

φ1.2mm

Welding current

350A

Shielding gas

CO2

Sensor

OMRON

Welding source

2sets×MEGMEET (CM-350)

Motion Range

Arm rotation (JT1)

±165°

Arm out-in (JT2)

±150°~-90°

Arm up-down (JT3)

45°~175°

Wrist swivel (JT4)

±180°

Wrist bend (JT5)

±135°

Wrist twist (JT6)

±360°

Max speed

Arm rotation (JT1)

240°/s

Arm out-in (JT2)

240°/s

Arm up-down (JT3)

220°/s

Wrist swivel (JT4)

430°/s

Wrist bend (JT5)

430°/s

Wrist twist (JT6)

650°/s

Moment (N*m)

Wrist swivel (JT4)

12

Wrist bend (JT5)

12

Wrist twist (JT6)

3.75

Moment of inertia (kg*m2)

Wrist swivel (JT4)

0.4

Wrist bend (JT5)

0.4

Wrist twist (JT6)

0.07

Power Requirements*2

2KVA
