- Size: 9.9CBM
- Place of Origin: China
- Brand Name: HAOYU
- Model Number: NZC3-3000
- Weight: 1600.000 kg

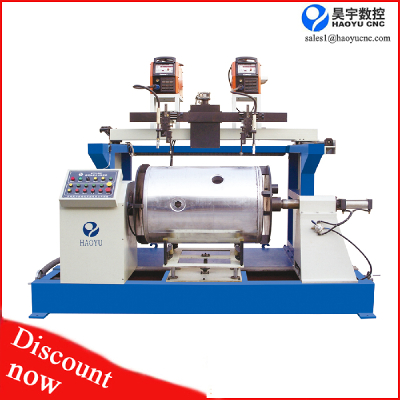

Tank Seam Welding Machine/Automatic Welding Machine
Welding gun can automatically detect the seams and complete welding tank girth/circular seam
Melting thickness and width will be able to reach welding requirement. With uniform and smooth welding appearance.
Choose MIG welding type, weld double-seam at the same time
Machine Structure
Left side of machine body is rotary unite, right side is pneumatic thimble. Tank will be fixed by the rotary. Rotation speed is controlled by AC servo motor. And the rotation speed is varied with tank welding position.
In order to meet welding requirement, welding gun can be adjusted up and down, side to side and angled turn. They maximize throughout, and welding deformation can be reduced significantly. Welding seam detection device will make sure the fixed distance between welding gun and tank surface.
Welding gun is driven to move up and down, forward and backward by AC servo motor. It is adjusted by ball screw, accurate adjustment and positioning.
welding automation with ARC WELDING ROBOTIC ARM, Automatic MIG girth seam welding robot for tank and air compressor, aluminum orbital pipe tube welding robot machines manipulator with robotic arm, cnc beam steel submerged arc welding machine to weld pipe and flange, automatic TIG Longitudinal girth Circular circumferential Straight seam robotic welder welding machines for welding tank or round tubes, seam welders products suppliers, manufacturers and exporters on Alibaba.com stitch welders, gantry type pipe handling robot welding machine manufacturers china for steel pipe handling and packing, Scaffolding circular seam automatic welding machine, Scaffolding Automatic Welding Machine, Carbon steel Scaffolding Ringlock Ledger Welding Machine, Pipe handling Robot, gantry robot for steel pipe handling packing, pipe welding manipulator with robotic arm, gantry type robot welding machine manufacturers china, arm robot, automatic welding machine, argon welding machine, pipe cutting machine, welding robot, welding machine, pipe welding machine, industrial robot arm, robotic welding machine, robot arm, Steel Pipe Welding Machine, Circumferential Seam Welding, Seam Welding, girth welding machine, Tank welding machine,Seam welders
Welding diameter | 300~1200mm |
Welding height | 800mm |
Minimum welding thickness | 1mm |
Rotation speed | 0~5R/MIN |
welding gun moving range in up-down direction | 200mm |
welding gun moving range in front-rear direction | 500mm |
Welding gun rapid speed | 0.1-10m/min |
Welding voltage | 0~40V |
Welding current | 0~300A |
Diameter of solid wire | Φ1.2~Φ1.6mm |
Welding source | Lincoln (CV-500) |
Shielding gas consumption | 15L/min |
Air compressor | 0.4~0.6MPA |
Production time | 1pc/10min |
