- Size: 6
- Place of Origin: China
- Brand Name: HAOYU
- Model Number: N
- Weight: 1500.000 kg

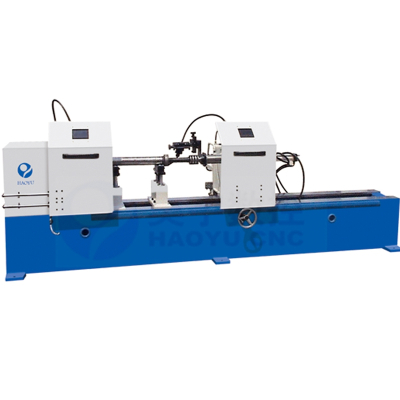

Scaffolding Ledger Ringlock Welding Machine
Weld circular seams on scaffolding. Welding process will be continual and steady. Machine will stop when the welding is finished.
This machine also can join 2 tubes/pipes together.
MIG/MAG welding type
Inner prop only welding one side in flange plat; Outer prop two sides welding-one same flange and another in threaded pipe. We will arrange proper accessories for ledger, inner&outer prop.
- Size: 6
- Place of Origin: China
- Brand Name: HAOYU
- Model Number: N
- Weight: 1500.000 kg
Pipe diameter | 48.3-68mm |
Pipe max length | 3100mm |
Rotation speed | 0.1～1rpm |
Motor power | 0.75KW |
Air pressure | 0.4～0.6MPA |
Welding gun moving range in the left-right direction | 100mm |
Welding gun lifting range | 100mm |
Dip angle | ±15° |
Welding voltage | 16-40V |
Welding current range | 60-500A, at 60% |
Welding source | China AOTAI NBC-350 |
Machine working voltage | 380v 3phase 50hz |
