- Size: 8
- Place of Origin: China
- Brand Name: HAOYU
- Model Number: N
- Weight: 1400.000 kg

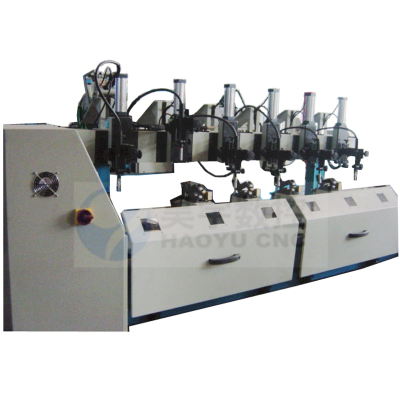

Scaffolding Circular Seam Automatic Welding Machine
Welding machine for vertical standards, has 12 sets welding guns for 6 pcs rosettes circular seam welding. With uniform and smooth welding appearance.
Choose MIG welding type, weld 6 seams at the same time.
Machine is equipped with 12 welding guns. They maximize throughout, and welding deformation can be reduced significantly.
Japan OMRON PLC is used to control the whole machine.
Pipe is fixed by rotary lathe and thimble, and supported by bracket of rolling wheels.
Welding torch is driven by air cylinder. Drive device includes AC stepper motor, ball screw and linear guide way. The lifting time and frequency are controlled by numerical control system.
Pipe diameter | 3mm～60mm |
Pipe length | 1m～3.1m |
Welding speed | 450～600mm/min |
Welding type | CO2 shielded arc welding |
Program control | Japan OMRON PLC |
Loading capacity | 800KG |
Air pressure | 0.4～0.6MPA |
Welding gun moving range | 100mm |
Rotation degree | 360° |
Welding current | 240A |
Machine working voltage | 380v 3phase 50hz |
