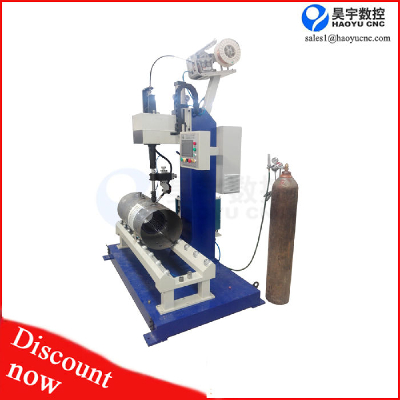

Automatic Circumferential Seam Welding Machine for Nut and Nozzle
Automatic Circumferential Seam Welding Machine is used to weld tank water nozzle or valve seat. Machine will stop when the welding is finished.
MIG welding type
Melting thickness and width will be able to reach welding requirement. With uniform and smooth welding appearance.
The welding torch is fixed; the work piece will rotate. Welding angle can be adjustable.
Welding torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.
Japan OMRON PLC controller, with touch man-machine interface.
Push-type wire feeder
Welding speed | 600mm/min |
Motor power | 0.37KW |
Air compressor | 0.4~0.6MPa |
Machine rapid speed | 2m/min |
Welding gun lifting range | 30mm |
Dip angle | 30°~50° |
Welding voltage | 15~36V |
Welding current | 50~500A |
Welding wire diameter | Φ0.8~Φ1.2mm |
Shielding gas consumption | 15L/min |
Machine working voltage | 380~415V 3phase 50hz |
Welding source | China AOTAI, Lincoln, OTC, Panasonic |
